Internal Forces 2D Results

List of results

There are the following list of results based on selection of Type of values.

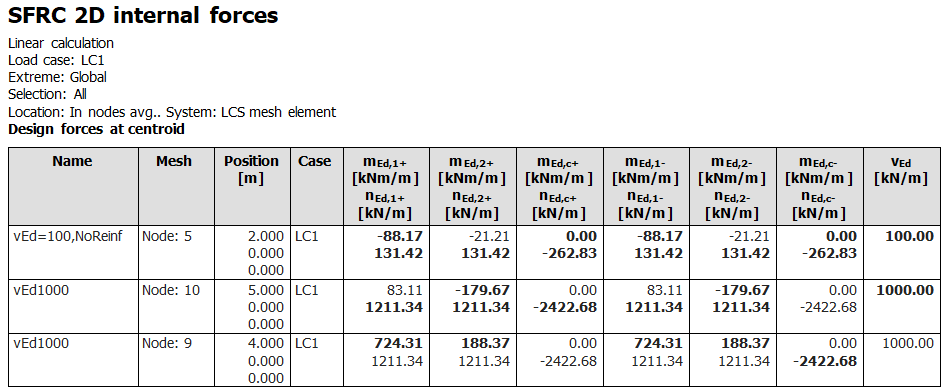

• Design (centroid) - forces which are used for design of reinforcement calculated to centre of gravity of cross-section and related to direction (1,2) and surface(+-); these forces are comparable with 1D solution in fact. The forces for upper and lower surface are the same in case of directions(1,2) of designed reinforcement are the same. These forces are calculated based on design (surface) forces and virtual forces

mEd1,+	Dimensional bending moment at centroid recalculated to first defined direction (1) for upper (+) surface
mEd2,+	Dimensional bending moment at centroid recalculated to second defined direction (2) for upper (+) surface
mEd,c+	Dimensional bending moment at centroid recalculated to compression strut in upper (+) surface
nEd,1+	Dimensional normal force at centroid recalculated to first direction (1) and upper (+) surface
nEd,2+	Dimensional normal force at centroid recalculated to second direction (2) and upper (+) surface
nEd,c+	Dimensional normal force at centroid recalculated to compression strut in upper surface(+)
mEd1,-	Dimensional bending moment at centroid recalculated to first defined direction (1) for lower (-) surface
mEd2,-	Dimensional bending moment at centroid recalculated to second defined direction (2) for lower (-) surface
mEd,c-	Dimensional bending moment at centroid recalculated to compression strut in lower (-) surface
nEd,1-	Dimensional normal force at centroid recalculated to first direction (1) and lower (-) surface
nEd,2-	Dimensional normal force at centroid recalculated to second direction (2) and lower (-) surface
nEd,c-	Dimensional normal force at centroid recalculated to compression strut in lower surface(-)
vEd	Shear force resultant

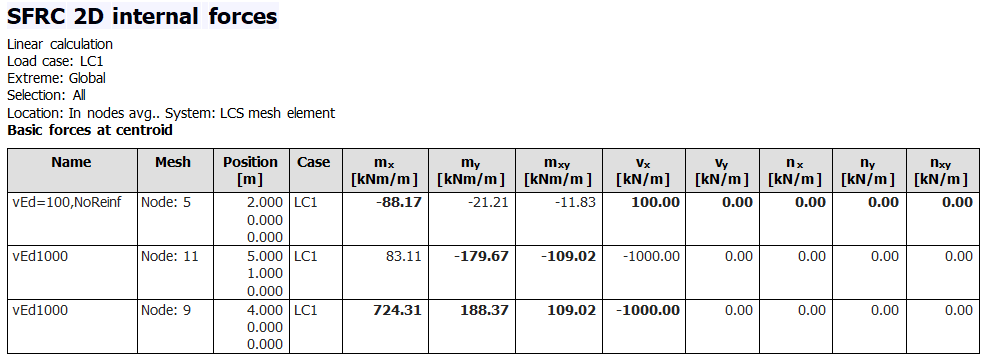

• Basic (centroid) - forces related to centre of gravity calculated purely on FEM (the same forces as are presented in Results >2D members > 2D internal forces

mx	Bending moment in x direction
my	Bending moment in y direction
nx	Normal force in x direction
ny	Normal force in y direction
nxy	Membrane shear force
mxy	Torsional moment
vx	Shear force in x direction
vy	Shear force in y direction

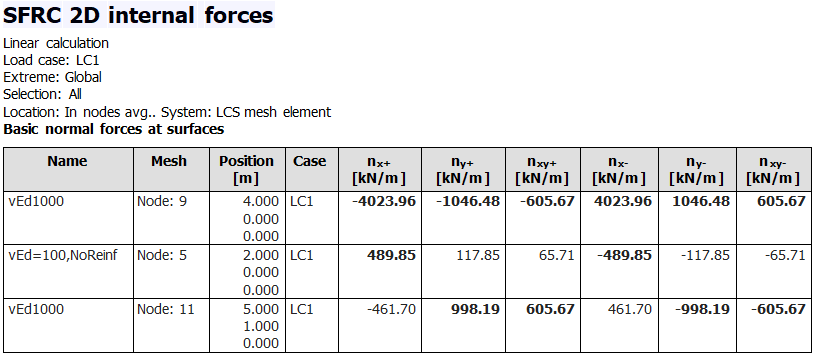

• Basic (surface) - basic forces from FEM analysis recalculated to surface

nx,y+-	Normal force in direction x recalculated to upper (+) surface
nx,y+-	Normal force in direction y recalculated to upper (+) surface
nxy+-	Membrane shear force recalculated to upper (+) surface
nx,y+-	Normal force in direction x recalculated to lower (-) surface
nx,y+-	Normal force in direction y recalculated to lower (-) surface
nxy+-	Membrane shear force recalculated to upper (-) surface

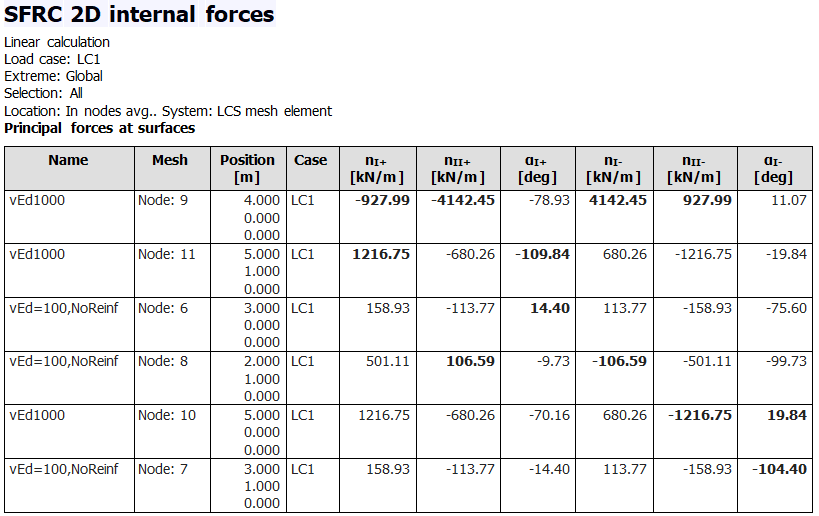

• Principal (surface) - basic forces from surface recalculated to Principal forces in surfaces

nI+	Principal force in direction I recalculated to upper (+) surface
nII+	Principal force in direction II recalculated to upper (+) surface
aI+	Angle of first principal force in upper(+) or lower (-) surface
nI-	Principal force in direction I recalculated to lower (-) surface
nII-	Principal force in direction II recalculated to lower (-) surface
aI-	Principal force in direction I recalculated to lower (-) surface

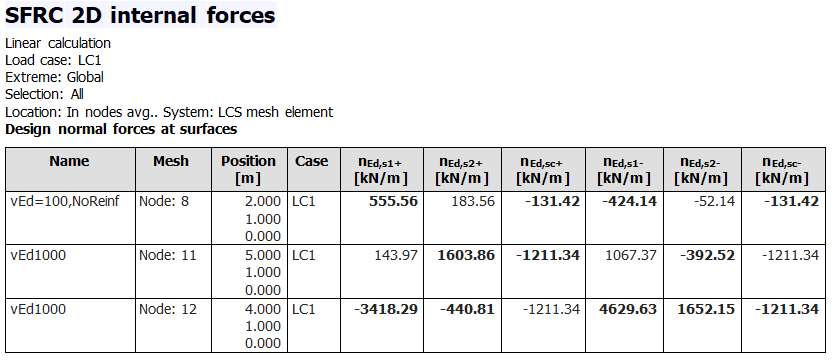

• Design (surface) - recalculation of principal forces(surface) to inputted directions separately for both surfaces with using Baumann’s transformation formula

nEd,s1+	Normal surface force at upper surface (positive direction of z axis of LCS) in defined first direction of reinforcement
nEd,s2+	Normal surface force at upper surface (positive direction of z axis of LCS) in defined second direction of reinforcement
nEd,sc+	Normal surface force at upper surface (positive direction of z axis of LCS) in compressive concrete strut
nEd,s1-	Normal surface force at lower surface (positive direction of z axis of LCS) in defined first direction of reinforcement
nEd,s2-	Normal surface force at lower surface (positive direction of z axis of LCS) in defined second direction of reinforcement
nEd,sc-	Normal surface force at lower surface (positive direction of z axis of LCS) in compressive concrete strut

Graphical output

When user presses button refresh then calculation is done and the results are displayed in 3D window (See the following figure).

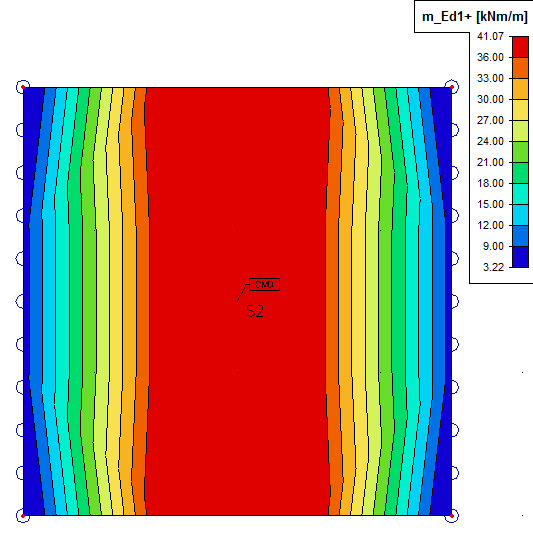

Graphical drawing in 3D window - m_Ed1+

Numerical output

Output is typical output of Program name where the values are printed into table based on selection from Type of values.
