Point mass

Point mass represents a mass concentrated into a single point. It may be considered as analogous to point load. Point mass may be positioned into a node, into an intermediate point of a 1D member or into an intermediate of a 2D member edge.

$image\Mass_point_node.gif$	$image\Mass_point_beam.gif$

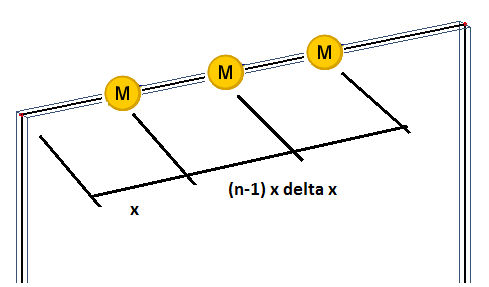

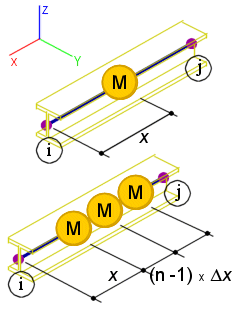

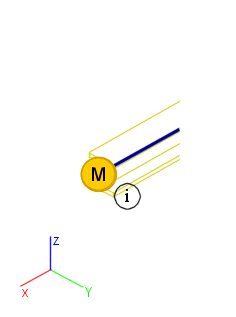

point mass in a node	point mass on a 1D member	point mass on a 2D member edge
